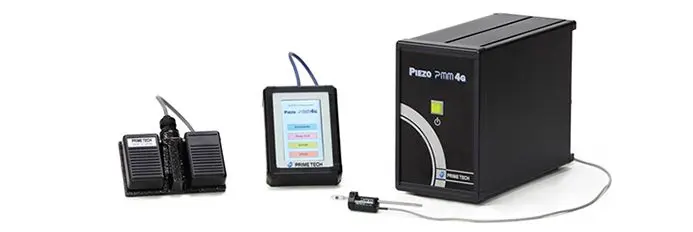

Piezo PMM4G

Piezo PMM4G

http://www.biolabsolutions.com.my/web/image/product.template/3/image_1920?unique=301f349
Delicate perforation of the membranes and easy operation are essential for micromanipulation. With our knowledge and well established experience in microinjection, and our long-standing expertise in piezo technology demonstrated in the very popular  PMM-150FU, Prime Tech has created the new  PIEZO PMM4G. The improvements introduced in the  PIEZO PMM4G include; a smaller and more effective drive unit, a more advanced user interface with a touch screen display, multiple programmable modes including Standard,  Piezo ICSI, and Expert, and a piezo design which offers a more gentle and effective impact.

RM 9,999,999.00 9999999.0 MYR RM 9,999,999.00

RM 9,999,999.00

Click Call for Price

This combination does not exist.

Call for Price.

Terms and Conditions

Share

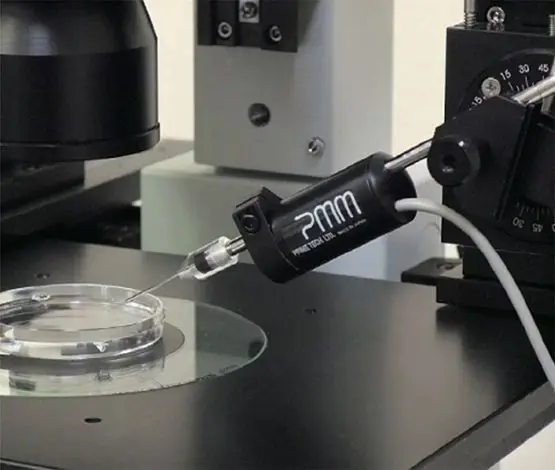

GENERAL OUTLINE OF THE PMM

The PRIME TECH PMM (Piezo Micro Manipulator) was developed to simplify and secure the operations of micro manipulation of by utilizing a rapid deformation of piezo electric elements, which is an our original driving method. The PMM prevents the cell from being deformed or damaged inadvertently and the micro pipette can be smoothly inserted into the cell membrane.

The PIEZO PMM4G has been improved: the perforate ability has been more effective and the operation has been easier than conventional "PMM-150FU'

Features

  • Colour touch screen display

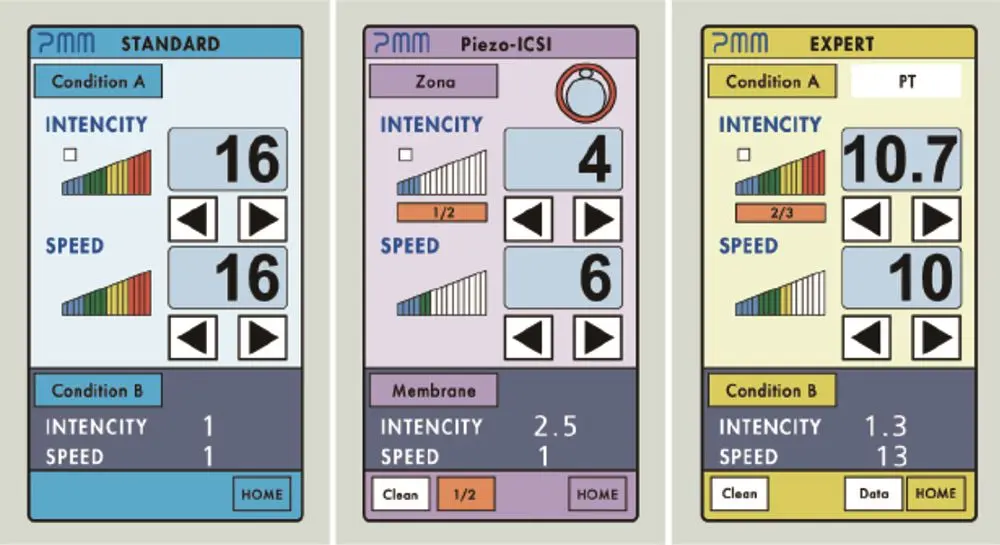

  • Three modes for microinjection: Standard, Piezo ICSI, Expert
  • Easy settings of the operating speed and intensity
  • Memory storage of the available programs
  • Two conditions can be selected by simply touching the display
  • Compact and lightweight body

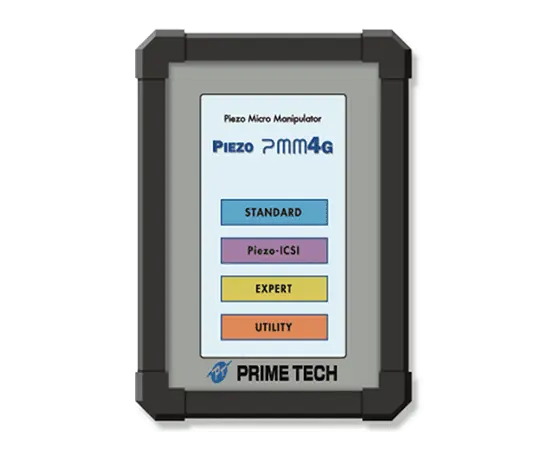

New type of user interface "TS-1"

Our qualified staff ensure that each childs' needs are always recognised and fulfilled.

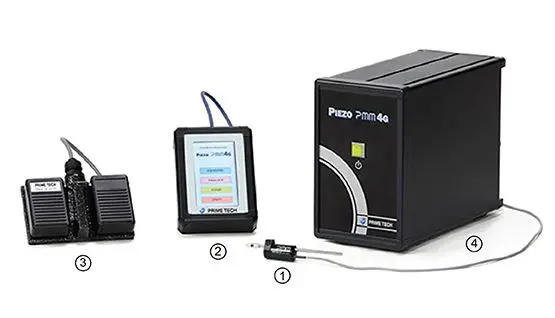

CONFIGURATION AND SPECIFICATIONS

SPECIFICATION

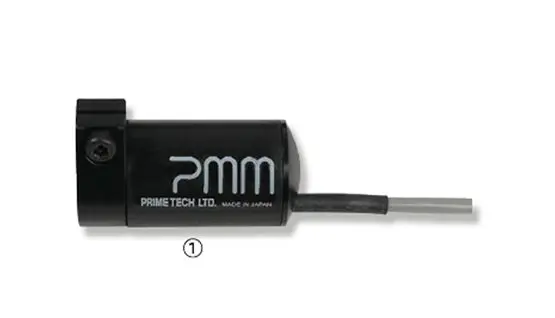

① PIEZO DRIVE UNIT MB-D

Traveling speed

0.08mm/s (Max)


Travelling resolution

Approx. 0.1μm (min)


Weight

110g (including wire)

② OPERATION BOX TS-1

Operation mode

3 modes


Utility mode



Sleep/Active switch



Speed

16 levels


Intensity

16 levels


Dimension

105(W) x 145(D) x 38(H) mm


Weight

600g (including wire)

③ FOOT SWITCH OP-16

Driving

Left pedal


Condition A/B selection

Right pedal


Dimensions

140(W) x110(D) x 35(H) mm


Weight

3.5kg

④ CONTROLLER PMAS-CT4G

Output



Dimensions

132.5(W)x110(D)x35(H) mm


Weight

3.5kg

OPERATING TEMP.

5 – 40°C (Avoid high humidity)


ABOVE THE SEA LEVEL

0 – 2,000m


POWER

AC100-240V (±10%), 50/60H, 60VA


ACCESSORIES

Spare fuse (T3. 15A 250V, T1A 250V), Power code


*Specifications and design are subject to change without notice.

*Micropipette holder is not included in the system.

*PMM is to be used for research only.
